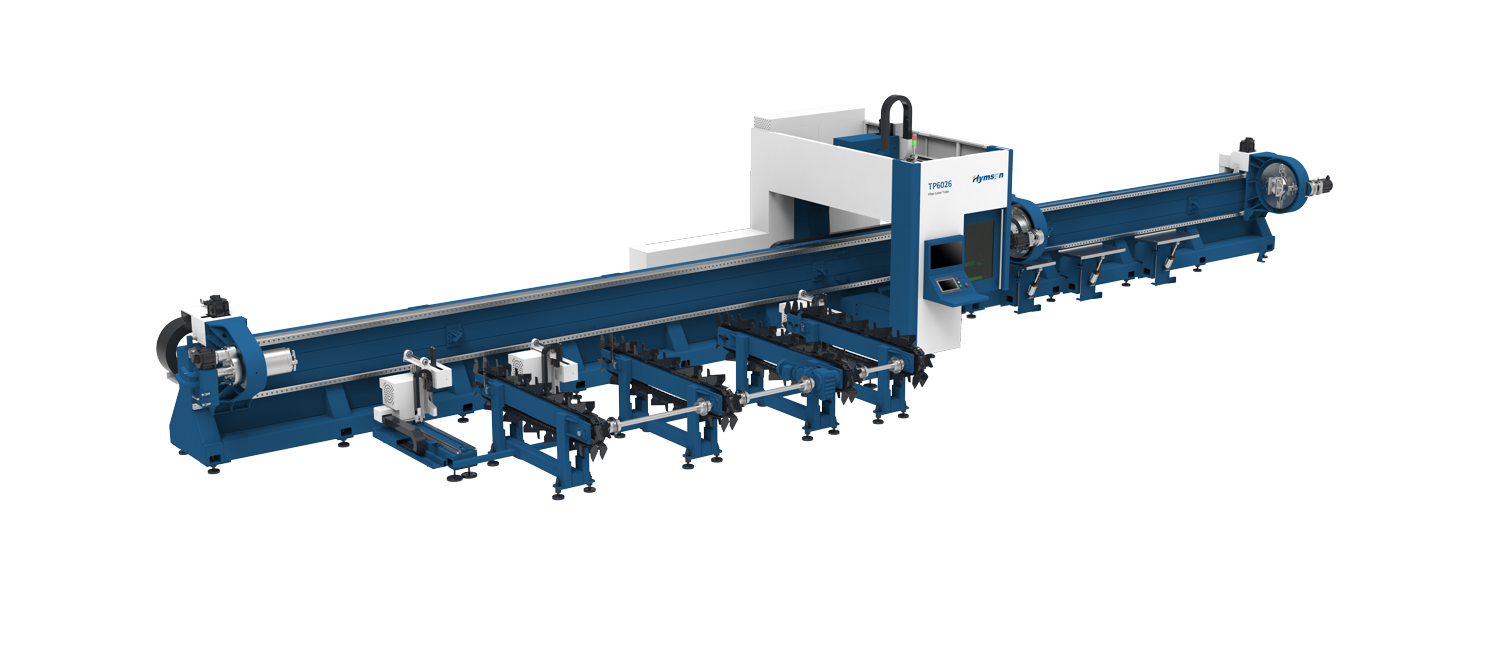

TP SERIES TUBE LASER CUTTING MACHINE

Hymson TP Series fiber laser cutting machine is specially design for heavy tubes and long tubes cutting.

Fiber Laser Cutting Machine - TP Series

CNC Laser Tube Cutting Machine

Hymson TP Series tube laser cutting machine is specially design for heavy tubes and long tubes cutting.

  • Equipped with three intelligent chucks for heavy tubes and profiles cutting.
  • Minimum 0mm tailing for better material utilization.
  • The brand new FSCUT professional pipe cutting system integrates multiple cutting functions.
  • The product has rich optional accessories.
  • Optional bevel cutting for seamless welding.
  • It is your ideal production tool for high efficiency laser processing and pipe cutting.



Machine Structure




Tube Laser Cutting Machine Main Body
  • The main body of the laser machine adopts the honeycomb welded structure and the internal stress is released through annealing treatment after welding.
  • The guide surface is clamped and machined at a time using a large gantry type high precision processing center. The flatness and straightness of the guide surface are ≤0.05mm. The surface roughness is up to 0.8.










  • Gantry beam structure to ensure high rigidity.
  • Z-axis 2g follow-up acceleration, high efficiency.
Tube Laser Cutting Machine Price








Fiber Laser Cutting Machine
  • During the cutting process, the heavy-duty chuck holds the pipe material with three chuck jaws to provide multi-point support and correct pipe deformation.
  • The shortest tail stock is 0mm, improving material utilization.
  • Equipped with a clamping detection function to prevent accidental pipe falls and reduce the risk collision, improving safety.
  • The rear chuck has intelligent exhaust function, which effectively reduces smoke and dust, and returns you to a clean workshop.
  • It can process pipe weight up to 2T, pipe length up to 12000mm, round and square pipe range Φ20-560mm, support angle steel, channel steel, I-beam and other profiles.






  • Blanking cutting follow-up to guarantee the cutting precision of long pipes.
  • Blanking adopts cylinder flap combined action and is suitable for workpieces of different lengths.
Fiber Laser Cutting Machine Components








FSCUT control system


CNC Laser Tube Cutting Machine



FSCUT laser cutting control system, developed on the basis of Windows 10 operating system, communicates through Erthercat bus and integrates laser cutting modules with special functions. The simple and concise interface, power and practical functions, touch display screen and wireless keyboard and mouse make it easy to operate.

Performance Indexes

Model TP6026 TP9028 TP12036 TP12056
Tube Specification Circular Tubes:Φ10mm~Φ260mm
Square Tubes and Rectangular Tubes: □10mm~□260mm
Circular Tubes:Φ10mm~Φ280mm
Square Tubes and Rectangular Tubes: □10mm~□280mm
Circular Tubes:Φ20mm~Φ360mm
Square Tubes and Rectangular Tubes: □20mm~□360mm
Circular Tubes:Φ50mm~Φ560mm
Square Tubes and Rectangular Tubes: □50mm~□400mm
Power 3000W-6000W 3000W-6000W 6000W-20000W 6000W-20000W
Tailing ≥0mm ≥0mm ≥0mm ≥0mm
Infinite Rotation 100rpm/min 80rpm/min 60rpm/min 50rpm/min
Loading length 6000mm 9000mm 12000mm 12000mm
Max. path weigh 300KG 500KG 1.2t 2t
Dimension(L*W) 16000mm×4000mm 20000mm×5000mm 26000mm×5000mm 26000mm×5000mm
