HM SERIES PRECISION CNC METAL SHEET CUTTING MACHINE
Super Precision
Ultra-Speed Cutting
Stable Platform Design

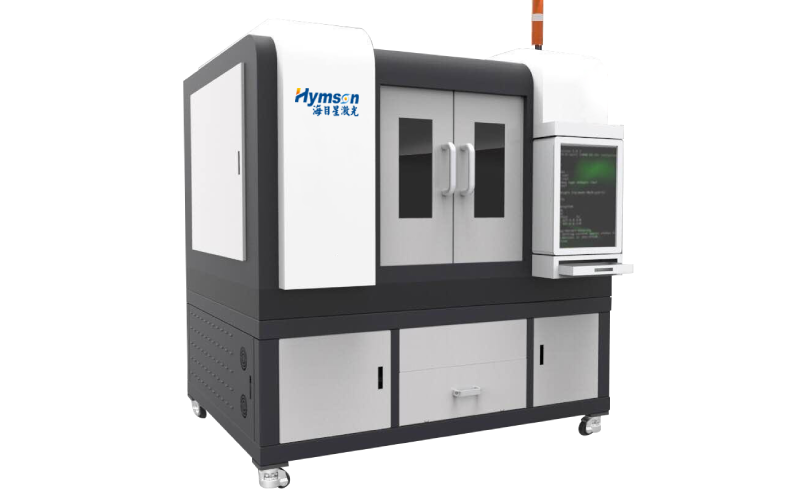

High precision laser cutting machine - HM SERIES
The advantage of the HM SERIES HIGH PRECISION LASER CUTTING MACHINE:
● High cutting performance for copper/brass, aluminum, stainless steel and carbon steel
Let's watch a video of our company:
Features
1.Small Footprint of precision laser cutting machine
2. Efficient Cutting CNC System of fiber cutting laser machine

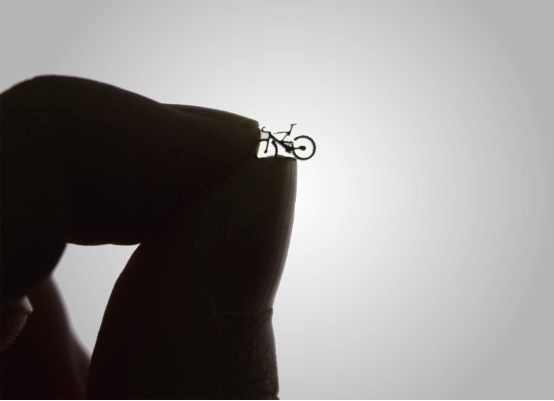

Samples:
Applicable Materials: Specially used for cuttingstainless steel,carbon steel,aluminum, rare metals and other thin plates.
3. Cutting Technology of fiber laser cutting machine:
▲ Leapfrog Cutting、Automatic Obstacle Avoidance、Lightning Cutting
▲ Rapid Perforation、Breakpoint Resume、Arbitrary Point Cut-in
▲ Gradual Speed Regulation in Tool Start、Aluminum Alloy Burr-free Cutting (Optional)
▲ Fly-cutting High Speed Cutting
4. Sheet laser Welding Machine Base with Mortise and Tenon Structure
● Super rigid machine base proven by coin test.
● Utilize state of the art welding technology to form the machine tool base.
● Heat treatment to strengthen the intensity and stiffness of base.
Standard industrial machine tool processing procedure
5. Master 6000 Control System
6.Automatic Switching between Marking and Cutting Modes
The marking and cutting modes are separately set by the operator before the commencement of cutting. The operator may reconfigure the machine and input new settings without stopping the material handling process. The switching between modes is automatic, which improves the productivity of compound cutting.The operator conducts setup before starting the processing without stopping the material handling.
7. Why choose Hymson laser
● Intelligent dust exhaust system: Work on the cutting area only, strengthen the ventilation effect.
● Intelligent gas control system: save gas up to 50%
● Auto-focusing: accurate, fast and smart
● Full-automatic lubrication system: Auto lubricate the gear and rack, maintenance free.
● Installation/training & support by global factory trained engineers.
| Control | |
| Handheld Control | The remote wireless remote controller allows the operator to perform the most operations from any convenient location: starting and stopping the program, lighting out, following, reversing the contour, increasing/decreasing the focal length, changing the feed rate, and outputting machine parts. |
| Gas Management | |
| Compressor | Screws, air-cooled, with sound-insulated housing, receiver, desiccant, and ancillary equipment for air cutting up to 16 atmospheres. |
| Vertical low-temperature gasifier | Used as a replacement for standard cylinders when used for cutting gas consumption increases. (eg: cutting stainless steel) |
| Safty | |
| Operator safety glasses | Direct, reflected and scattered laser beams may damage the operator's vision and may even lead to blindness. In order to protect the eyes from laser radiation, special protective glasses should be used. |
| Smoke Removal | |
| Exhaust fan | Used to remove the combustion products produced during the cutting process. |
| Filter - Ventilation | Filters - Ventilators are designed to remove suspended, fine and moderately dispersed dust and smoke from air during welding, metal thermal cutting, etc. |
| Spare Parts | |
| Supplies accessories | Protective glasses, nozzle. |
User’s Machine Installation Site Condition Preparation
| S/N | Content |
| 1 | Power Supply Capacity: ≥60KVA |
| 2 | Power Supply Requirements: (1) Three-phase voltage stability＜±5%; (2) Unbalancedness of three-phase power supply < 2.5% (Note: Abrupt changes in supply voltage and sudden power failure are not allowed, otherwise, the laser may be damaged easily. Good grounding is required (ground resistance < 3 Ohm). |
| 3 | Compressed Air Supply Requirements: (1) Air supply capacity: ≥ 0.8m3/min (2) Air supply pressure: ≥ 7bar (3) Dewpoint ≤ 5℃ (4) Oil content ≤ 0.01ppm Solid particle ≤ 0.01μm |
| 4 | Auxiliary gas for cutting: Oxygen (O2)/ Nitrogen (N2): Purity ≥ 99.99% |
| 5 | Sheet (Tube) Cutting: Black skin, smooth, level, rustless, evenly rolled, reaching the ISO standard. |
| 6 | Installation Site Requirements: 1. The foundation for equipment installation does not settle and should be constructed according to the foundation drawing provided by Party B; 2. Temperature Requirement: [5-30]℃; 3. Humidity Requirement: < 70%; 4. After the equipment is installed and commissioned, separate the laser and install an air conditioner. |
| 7 | The equipment operator should have been graduated from a secondary specialized school or above and have the experience in operation of computers and general numerically-controlled lathes. The equipment should be equipped with a programming computer. |
Installation and Commissioning
1. All the equipment provided under the contract should be installed and commissioned by Hymson. After the contract is signed, we will determine the specific installation location of the equipment in the shortest time and provide the equipment foundation drawing within 5 working days after the contract goes into effect. Prior to the installation and commissioning, you should prepare the equipment foundation strictly according to the requirements specified in the equipment foundation drawing provided by Hymson. After the installation site is ensured, the engineers will install and commission the equipment with the tools they carry and, within 10 days, complete the installation, commissioning, technical index tests, training, acceptance and delivery for use;
2.The expenses related to the installation and commissioning and the staff assigned should be borne by Hymson.
Transportation and Logistics
1. The place of delivery should be your installation site.
2. Standard packaging suitable for long-distance transportation by truck, being dampproof, rust-proof and shockproof; suitable for integral hoisting and indicating the centre of gravity for lifting and the hoisting position;
3. Mode of Transport: Motor transport. We should bear the freight and insurance.
4. Each packaging box should be accompanied by a detailed packing list and a quality certification as well as the instructions on the equipment and other documents and materials. The packing list should be outside the packaging box and the quality certification should be inside the packaging box.
Pre-sale Service
1. Welcome to send sample material to us for testing laser marking engraving for you.
2. We offer pictures, videos and other relevant documents for you to know more about the machine.
3. We are online and would respond fast to answer all your questions.
4. If you have chance visiting China, you are warmly welcome to visit our factory.
After-sale Service
1. Any parts have a quality problem during the warranty period, We will send you a new replacement for free. And Customer affords the replacement shipping cost.
2. The training video, detailed manual, and catalog sent with the machine. The customer could study the operation of the machine by watching the clear training video.
3. If there is a technical problem or new inquiry, Hymson has a fast response to service support by online or email even if need by the phone call.
4. Professional technical support and after sales following up. A free software update.
FAQ
1) What are the primary products of your company?
We are fiber laser cutting machine factory in China, our primary products include sheet metal laser cutting machine, brass cutting machine, tube laser cutting machine, precision laser cutting machine, high precision laser cutting machine, laser welding machine with reasonable metal cutting laser machine price.
2) Where is your fiber laser equipment applied to?
Our high precision laser cutting machine is suitable for all kind of stainless steel, carbon steel, aluminium, copper, galvanized steel, electrolytic steel and silicon steel etc.
3) What are the advantages of your laser equipment?
By using Hymson laser, you can monitor end-to-end process and take complete control of all the machining process. The whole machining process will be done smoothly, which will greatly improve production efficiency. In addition, the precision and consistency of the products in mass production is guaranteed.
4) How to do control the quality when you produce laser equipment?
We introduce international advanced production technology, and strictly implement a series of measures of quality and cost control to ensure the quality of laser cutting machine. In addition, all raw materials are strictly inspected in accordance with international standards before they are put into production.
5) Which countries are your laser machinery sold to?
Our high precision laser cutting machine sell all over the world, such as United States, Spain,Netherlands,Poland,France,Turkey, Switzerland,Iran,Egypt, India, South Africa, Malaysia, Canada,Mexico,Colombia,Brazil,Chile,Korea, Japan and many other countries.
| Laser resonator | Fiber Laser |
| Power(W) | 800-2000 |
| Model | HM6060 |
| Working range(mm) | 600X600 |
| Maximum positioning speed parallel axis x, y (m/min) | 100 |
