HF·B series fiber laser cutting machine is a widely popular Hymson professional laser cutting machine. Brand new upgraded mechanical mechanism can ensure long-term stable operation and production safety protection, the ultra-high power machine lathe can stably and continuously process all kinds of ultra-thick plates.

• Modular design for high quality matching of the whole machine.
• Hymson dynamic compensation technology for thermal effect, effectively ensuring long-term and stable use and guaranteeing cutting precision of machine.
• Upgraded machine with metal plate welded and mortise and tenon joint structure for effectively solving problems of deformation of machine body and unstable machining.
• Multi-point support balancing technique, providing multiple guarantees for stability and guaranteeing stress equilibrium to prevent machine from sinking.
• Intelligent zoned ventilation system with high efficiency of ventilation and dust removal for good health and environmental protection. Can be equipped with automatic warehousing, full-automatic loading/unloading system, etc. for extension of automatic production line.

Modular design

• Several components with independent functions are integrated scientifically and systematically for high quality matching of the whole machine.
• With high strength and high reliability of the machine guaranteed, the product development speed is improved to respond to market demand rapidly.

Machine Body with High Strength Structure

• Adopting high strength sheet for welding to guarantee stable structure of the machine and long-time and stable operation of the equipment..
• The machine body processed has undergone high temperature treatment to eliminate internal stress caused by the material itself and welding to the utmost extent, which ensures high strength, high precision and high tolerance.

Zoned Ventilation System

• Adopting zoned and segmental ventilation and using follow-up control to control the acts of cylinders in various zones to realize lower energy consumption and higher efficiency.
• Only the suction opening for the cutting operating range is opened for shorter path, more centralized and stronger wind power, and better dust removal effect.

Ultra-high-temperature protection

• Using a variety of specifications, customized high-temperature refractory materials.
• 360-degree all-around high-temperature protection of the machine lathe, the perfect solution to the problem of high-power machine tool heat protection.

High Strength Cross Beam

• Adopting Hymson’s patented structural design of drawn aluminum cross beam for light overall mass, high tensile strength and superior dynamic performance.
• Through simulated data analysis and testing of different models and lengths, ensuring quality, rigidity and dynamic nature of the cross beam in long-time running.

Servo Motor

• Branded servo motor and drive, with high encoder resolution.
• Integrating high dynamics, compact structure and energy efficiency.

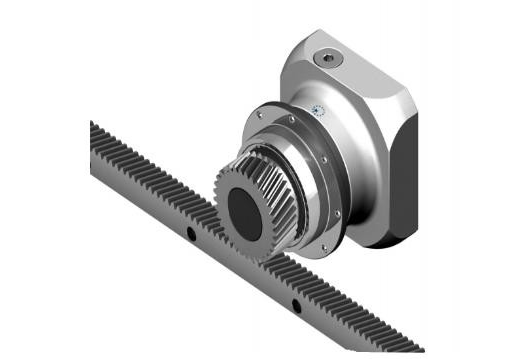

Precision Gear Drive

• Precision machined high precision pinions and racks having been finished and ground.
• Super high matching rate and precision, high bite rate, smoother and quiet rotation.
• Compact load driven structure for effectively reducing driving torque and eliminating vibration.
• Adopting double drive gantry motion system for higher acceleration and faster movement speed.

FSCUT laser control system

• The system is taken as the Hymson Super Brain-EtherCAT bus control platform and is developed on the basis of Window 10 architecture. The data calculations are conducted with an industrial grade CPU, which is secure, reliable and self-diagnostics.
• FSCUT, applied to the flat laser cutting system, contains such modules as the production management and statistics, laser cutting technology processing, laser processing control, intelligent processing assistance, rapid proofing and debugging, modular diagnostics and maintenance, local and remote assistance to assist users in completing their production tasks promptly. The response time is less than or equal to 100μs.
• The system can be combined with automatic loading and unloading production lines and flexible production lines of FMS laser cutting to support the automated production.
