The maximum laser power of your laser machine affects both the quality of your products and the working time. For laser engraving applications, you can achieve good results with laser power between 25-80 watts. For applications that require high precision and efficiency, we would recommend a laser power greater than 80 watts. In this article, we will introduce laser cutting machine for aluminum, metal with diverse laser power and what thickness and size of the cutting plate or pipe can cut with machines:
6KW Steel Laser Cutter Machine for High-Quality Sheet Metal Laser Cutting

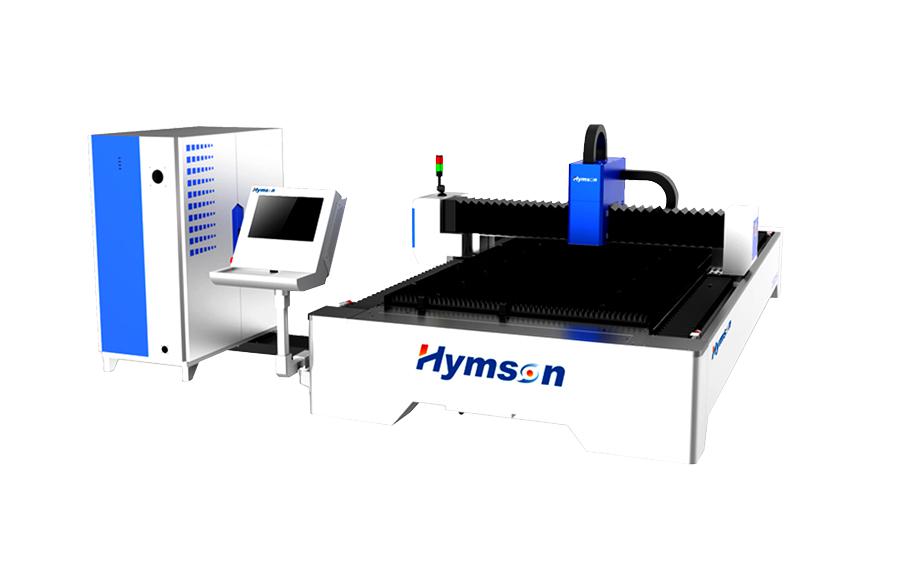

Take HF· B series Fiber laser cutting machine as an example, it has laser power under 8000W and It is the ideal economical machine for high-quality sheet metal laser cutting. The equipment is equipped with CYPCUT laser cutting control system, including laser cutting fabrication processing, common layout function and laser processing control. The main functions include graphics processing, parameter setting, custom cutting process editing, layout, path planning, simulation, and cutting process control.
The maximum cutting thickness of different materials for 6000W fiber laser cutting machine: carbon steel maximum thickness 25mm; stainless steel maximum thickness 25mm; aluminum material maximum thickness 25mm; yellow copper maximum thickness 12mm.
The maximum cutting thickness of different materials for 6000W fiber laser cutting machine: carbon steel maximum thickness 25mm; stainless steel maximum thickness 25mm; aluminum material maximum thickness 25mm; yellow copper maximum thickness 12mm.
Parameter of sheet metal cnc machine:
|
6000 Watt Cutting Parameters Sheet
|
||||
|
Material Thickness(mm)
|
Reference to the effective cutting speed（m/min）
|
|||
|
Stainless Steel Nitrogen Gas
|
Aluminum Material Nitrogen Gas
|
Yellow Copper Nitrogen Gas
|
Carbon Steel OxygenGas Nitrogen Gas
|
|
|
1.0
|
35.0-55.0
|
35.0-45.0
|
35.0-45.0
|
8.0-12.0/40.0-55.0
|
|
2.0
|
20.0-30.0
|
20.0-25.0
|
20.0-25.0
|
5.0-7.0/25.0-35.0
|
|
3.0
|
12.0-20.0
|
8.0-18.0
|
10.0-15.0
|
3.5-5.0/15.0-20.0
|
|
4.0
|
9.0-14.0
|
9.0-12.0
|
8.0-10.0
|
3.2-4.5/10.0-15.0
|
|
5.0
|
6.0-10.0
|
5.0-8.0
|
4.5-6.0
|
3.0-3.8/7.0-9.0
|
|
6.0
|
4.0-8.0
|
4.0-6.0
|
3.0-4.0
|
2.6-3.2/5.0-6.0
|
|
8.0
|
3.0-4.0
|
2.0-3.0
|
1.6-2.2
|
2.0-2.5
|
|
10.0
|
1.6-2.2
|
1.0-1.9
|
0.8-1.2
|
1.6-2.1
|
|
12.0
|
1.2-1.5
|
0.8-1.4
|
0.5-0.7
|
1.0-1.4/1.6-2.0
|
|
16.0
|
0.5-0.75
|
0.5-0.7
|
|
0.7-0.85/1.2-1.6
|
|
20.0
|
0.4-0.6
|
0.3-0.5
|
|
0.5-0.75
|
|
22.0
|
|
|
|
0.5-0.65
|
|
25.0
|
0.2-0.3
|
0.1-0.2
|
|
0.4-0.6
|
Let’s watch a video to learn how 6000W Laser Cutting Machine works?
4KW CNC Laser Tube Cutting Machine for Small Pipe Cutting
Take MP·6012D series as an example, MP6012D laser cutting machine is a newly designed model for small pipe cutting with Master5000T Control System.
The maximum cutting thickness of different materials for 4kw fiber laser cutting machine: stainless steel maximum thickness 16mm; aluminum material maximum thickness 16mm; yellow copper maximum thickness 10mm; carbon steel maximum thickness 22mm.
| 4000 Watt Cutting Parameters Sheet | ||||
| Material Thickness(mm) | Reference to the effective cutting speed（m/min） | |||
| Stainless Steel Nitrogen Gas | Aluminum Material Nitrogen Gas | Yellow Copper Nitrogen Gas | Carbon Steel OxygenGas Nitrogen Gas | |
| 1.0 | 40.0-70.0 | 35.0-50.0 | 30.0-40.0 | 8.0-10.0/40.0-65.0 |
| 2.0 | 20.0-40.0 | 15.0-25.0 | 12.0-20.0 | 5.0-7.0/18.0-30.0 |
| 3.0 | 15.0-25.0 | 9.0-16.0 | 8.0-15.0 | 3.5-4.2/11.0-17.0 |
| 4.0 | 7.0-8.0 | 5.0-7.0 | 4.0-6.0 | 3.2-3.8/7.0-9.0 |
| 5.0 | 5.5-6.5 | 4.0-5.0 | 2.5-4.0 | 2.6-3.6 |
| 6.0 | 3.0-4.0 | 2.5-3.5 | 1.0-1.8 | 2.5-3.0 |
| 8.0 | 1.5-2.5 | 1.5-2.0 | 0.4-0.6 | 2.0-2.6 |
| 10.0 | 0.8-1.2 | 0.5-1.0 | 0.1-0.3② | 1.8-2.1 |
| 12.0 | 0.3-0.5① | 0.3-0.5 | 1.0-1.2 | |
| 16.0 | 0.2-0.4② | 0.2-0.4② | 0.75-0.85 | |
| 20.0 | 0.6-0.7 | |||
| 22.0 | 0.5-0.6② | |||
3KW Laser Cutting Machine for Simple and Pratical Cutting
The maximum cutting thickness of different materials for 3kw fiber laser cutting machine: stainless steel maximum thickness 12mm; aluminum material maximum thickness 12mm; yellow copper maximum thickness 8m; carbon steel maximum thickness 22mm. Take HP 6018D as a sample, this laser cutter has simple and pratical cutting software:
| 3000 Watt Cutting Parameters Sheet | ||||
| Material Thickness(mm) | Reference to the effective cutting speed（m/min） | |||
| Stainless Steel Nitrogen Gas | Aluminum Material Nitrogen Gas | Yellow Copper Nitrogen Gas | Carbon Steel OxygenGas Nitrogen Gas | |
| 1.0 | 40.0-60.0 | 35.0-50.0 | 25.0-35.0 | 6.0-10.0/30.0-59.0 |
| 2.0 | 20.0-30.0 | 15.0-25.0 | 10.0-15.0 | 5.0-7.0/18.0-28.0 |
| 3.0 | 8.0-14.0 | 6.0-11.0 | 5.0-10.0 | 3.8-4.2/9.0-12.0 |
| 4.0 | 5.0-7.0 | 4.0-6.0 | 3.0-5.0 | 3.2-3.8 |
| 5.0 | 3.5-4.0 | 2.5-3.5 | 1.5-2.5 | 2.5-3.4 |
| 6.0 | 2.8-3.2 | 1.5-2.5 | 0.8-1.2 | 2.4-2.9 |
| 8.0 | 0.8-1.2 | 0.7-1.1 | 0.3-0.5② | 1.8-2.3 |
| 10.0 | 0.6-0.9① | 0.3-0.6① | 1.0-1.4 | |
| 12.0 | 0.2-0.4② | 0.2-0.4② | 0.9-1.1 | |
| 16.0 | 0.6-0.8 | |||
| 20.0 | 0.5-0.65 | |||
| 22.0 | 0.45-0.55② | |||
1KW Sheet Plate Cutting Machine for High Precision Cutting
The maximum cutting thickness of different materials for 1000 watt fiber laser cutting machine : stainless steel maximum thickness 10mm; aluminum material maximum thickness 8mm; yellow copper maximum thickness 6mm; carbon steel maximum thickness 20mm.Take HF A series as an example, deal with the disposable material requirements of the large products and Marine industries, and high precision cutting can be guaranteed. Hymson targeted to develop the super wide laser cutting machine and overcome the limitations of the market existing laser cutting machine processing wide sea star, constantly breaking the technical difficulties.
High quality sheet metal laser cutting for sale
| 1000 Watt Cutting Parameters Sheet | ||||
| Material Thickness(mm) | Reference to the effective cutting speed（m/min） | |||
| Stainless Steel Nitrogen Gas | Aluminum Material Nitrogen Gas | Yellow Copper Nitrogen Gas | Carbon Steel OxygenGas Nitrogen Gas | |
| 1.0 | 16.0-20.0 | 10.0-12.0 | 7.0-9.0 | 7.0-9.0/16.0-20.0 |
| 2.0 | 5.5-7.0 | 4.0-4.5 | 2.0-3.0 | 4.5-5.5 |
| 3.0 | 2.5-3.5 | 1.0-1.5 | 0.7-1.0② | 2.5-3.0 |
| 4.0 | 1.5-2.2 | 0.7-0.9① | 2.0-2.5 | |
| 5.0 | 0.8-1.2① | 1.6-2.1 | ||
| 6.0 | 1.4-1.8 | |||
| 8.0 | 0.9-1.3 | |||
| 10.0 | 0.7-1.0 | |||
| 12.0 | 0.5-0.6② | |||
12KW CNC Metal Sheet Cutting Machine
12000W is a breakthrough in power and fiber laser technology, then here comes the question, so how thick can a 12,000-watt fiber laser cutting machine cut? A 12000 watts fiber laser cutting machine can cuts stainless steel up to 50mm, and it can cuts carbon steel up to 45mm. That’s really amazing, right? Now Let’s watch what material can 12000w fiber laser cutting machines cut.
Hymson | 12000W Laser Cutting Machine • Air Cutting
Conclusion
After confirming good equipment, you can go to peers or the market to understand equipment performance and equipment parameters, select good performance laser cutting machine company, service number of manufacturers to communicate in the early stage, and to the factory on-site sampling, later can be the configuration of equipment, prices, services and so on have a detailed understanding.
Hymson laser is CNC laser cutting factory in China and we have an experienced technical team, a highly innovative design team, and a dynamic and patient sales team. We are your very trustworthy partner on the way to buy fiber laser cutting machine. If you need more further information, don't hesitate to contact us !
