Distributors operating in competitive sectors like construction equipment, sheet metal, home appliances, and energy systems need more than just machines—they need versatile, high-return solutions that help clients reduce cost and increase speed. That’s exactly what integrated sheet & tube laser cutting systems deliver.
Instead of maintaining separate machines for flat sheets and tubing, manufacturers are now investing in all-in-one platforms. In this guide, we’ll walk you through what these sheet-tube laser systems are, how they work, which models Hymson offers, and why they make a strategic choice for distributors targeting metalworking industries.
A Sheet-Tube Laser Cutting Machine: What is It?
A sheet-tube laser cutting machine is a dual-purpose fiber laser system that cuts both flat metal sheets and pipes—all in one setup. It’s built with a standard CNC laser cutting bed and a dedicated chuck system that rotates and feeds tubular material.
This integration significantly reduces production downtime, saves floor space, and delivers superior precision cutting across different materials like stainless steel, carbon steel, aluminum, and brass. It’s especially valuable for manufacturers making furniture frames, structural components, or any product combining plates and tubes.
How Does It Operate?
The machine runs in two switched operating modes:
- Sheet Mode: Flat sheet metal is placed onto the standard bed. The laser head moves along the programmed tool path to cut parts quickly and cleanly.
- Tube Mode: The pipe or profile is fixed by a motorized chuck, and the rotary axis moves to match the laser path. This enables smooth, high-speed cutting of round, square, rectangular, and non-standard tube shapes.
With autofocus heads, nesting software, and real-time monitoring, Hymson’s systems ensure precise output with minimal operator input.
Sheet-Tube Laser Cutter vs Traditional Cutting Solutions
|
Feature |
Sheet-Tube Laser Cutter |
Traditional Separate Systems |
|
Functions |
Sheet & tube |
Sheet cutting only / Tube cutting only |
|
Efficiency |
High—one machine, dual workflow |
Low—requires separate setup |
|
Workshop Space |
Compact, integrated |
Two or more machines required |
|
Changeover Time |
Short between operations |
Manual reconfiguration needed |
|
Precision |
High (±0.05mm) |
Medium to low (depending on method) |
|
Operating Cost |
Lower (shared parts, one operator) |
Higher (multiple setups/staff) |
|
Ideal For |
Diversified metal cutting workshops |
Large-scale single-purpose workshops |
Hymson Sheet-Tube Laser Cutting Machine Models

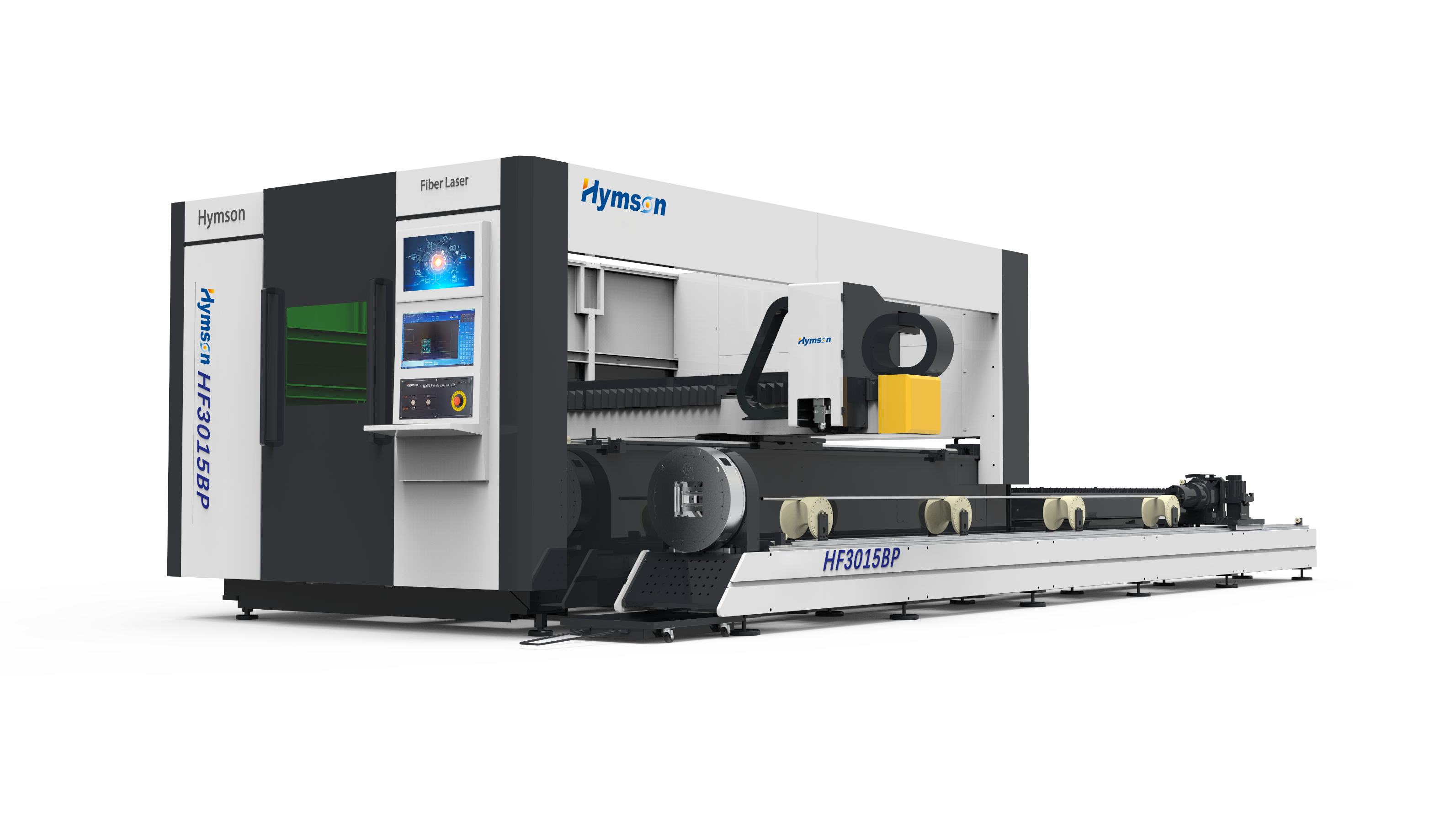

The HF-BP Series is Hymson’s compact sheet & tube laser cutting machine, designed for efficient dual-purpose processing. It integrates flat sheet cutting and round/square tube cutting in one system.
Key Features:
- Compact design, suitable for smaller workshops
- Supports both plate and tube cutting
- Stable feeding with pneumatic chuck system
- Ideal for carbon steel, stainless steel, aluminum parts
- Laser power options: 1.5 kW to 6 kW
Applications:
- Used in stainless steel furniture, electrical cabinets, pipe structures, and metal decoration components.
Benefits of Hymson’s Sheet-Tube Laser Cutting Solutions
Why should distributors prioritize this category?
- Dual Capability
Cuts both plates and tubes, saving your clients equipment and space costs.
- High Uptime
Minimal manual changeover and fast processing mean maximum machine utilization.
- Lower Training Burden
Single system handling both jobs reduces operational complexity and downtime.
- Flexible Configuration
Multiple power options (1.5 kW–12 kW+), different chuck types, sheet sizes and pipe lengths are available.
- Smart-Factory Ready
Seamless MES connectivity. Auto-loading, sorting, and remote diagnostics are supported.
Why Choose Hymson
Distributors count on Hymson because of more than performance specs. With Hymson, you offer:
- Proven technology with thousands of installations worldwide
- CE-certified machines engineered with automation in mind
- Fast lead times and reliable after-sales support
- Local service, training, and troubleshooting assistance
- Co-branding and territory-based distributor programs
Final Thoughts
For distributors in steel fabrication, modular construction, or industrial OEM sectors, choosing an integrated sheet-tube laser cutter can unlock a powerful value proposition for your clients and your business alike.
With Hymson’s solutions, you’re not just offering machines—you’re delivering productivity, space-saving, and cost reduction in every sale. Reach out to our team or explore the TU and T series further to discover how this technology can fit into your product portfolio.
Frequently Asked Questions
Q1: What pipe sizes are supported?
A: Round and square pipes up to 6 meters long, with options for 20–220mm diameters (model-dependent).
Q2: Can one operator run the machine?
A: Yes. One trained operator can handle both sheet and pipe cutting modes.
Q3: How long does it take to switch from sheet to tube mode?
A: Less than 60 seconds—the system is designed for rapid switching without mechanical reconfiguration.
Q4: Do I need separate software for tube cutting?
A: No. Hymson’s control system integrates both sheet and tube cutting features into one interface.
Q5: Is there remote support available?
A: Yes, Hymson supports online diagnostics, training, and alerts via cloud-connected systems.
